JLFM-2350B Roll Vertical Laminating Machine
- Saving time and efficiency: save manual paper folding time and increase 100% machine speed compared to the original single sheet process.
- low waste rate: reduce the excess paper due to single sheet slitting and the loss caused by the thickness of the paper.
- Adopt strong hot air drying system to achieve fast drying purpose, hot air circulation system, fast heating, stable, energy saving.

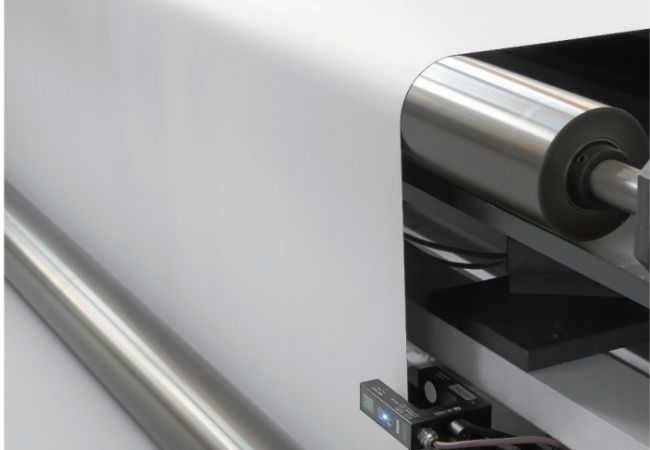

- The hot press roller adopts electromagnetic heating system, with uniform temperature and good thermostability, to achieve high quality requirements for laminating.
- With automatic hydraulic pressure, easy and convenient operation.
- Humanized design, convenient operation, human-machine interface, a glance on the screen in case of failure.
- Machine Introduction
- Main Technical Parameters
- Sample
- Company
- Exhibition
Product Profile
This machine is suitable for water-based, oil-based, pre-coated film and non-adhesive film lamination process, it is a “multi-purpose” and high-speed power-saving machine, which can be used for postcards, posters, books and magazines, information books, posters, color box packaging, hand bags, etc.
This machine has the advantages of high cost performance, power saving, fast speed and easy operation, which is the first choice of large and medium-sized laminating enterprises with high cost performance.
| Model | JLFM-2350B |
| Max. Roll Width | 2320mm |
| Min. Roll Width | 400mm |
| Max. Roll Da | 1300mm |
| Max. Roll Weight | 2000kg |
| Air Pressure | 6bar |
| Paper Thickness | 100-500 |
| Laminating Speed | 20-120m/min |
| Overall Power | 115kw |
| Overall Dimensions | 8.6*4.8*3.7 |
| Overall Weight | 15T |
- Laser Film
- Aluminized Film
- FilmBOPP Film
- PET Film
